Mini tilt buckets

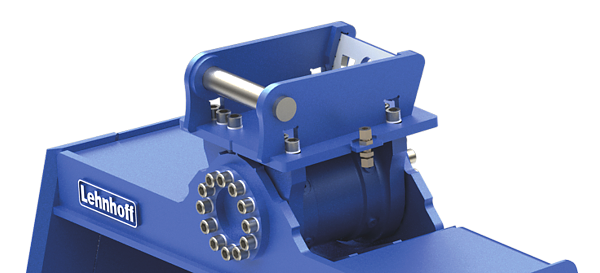

Lehnhoff has the perfect tilt bucket for every mini excavator application, starting from leveling work and ditch-cleaning to craving slopes. Choose from 2 different types of bucket shape and two differnt types of swivel drives (hydraulic cylinder or hydraulic rotating motor) for your tilt bucket. The Lehnhoff ditch-cleaning and universal tilt buckets are also available in a rigid version e.g. for the use with Powertilt quickcouplers. For more flexibility all tilt buckets are available with Symlock adapters.

Swivel design with hydraulic cylinder (H)

The robust and long-lasting swivel head for Lenhoff tilt bucket with hydraulic cylinder and piston-rod protection
enables a swing angle of 2 x 45°.

Rigid version

You can also get all ditch-cleaning buckets in a rigid design (e.g. for Powertilt).

Pivoting ditch-cleaning bucket in a new shape

The Lehnhoff ditch clearing buckets in the 0.5 - 6 ton class have received an update. Not only their shape, but also the stability has been optimized, both in the pivoting and in the rigid variant. All 4 MG bucket classes have been adapted to the current generations of mini excavators and particularly take into account the requirements for universal use.

New, market-oriented design
Extended bucket base
Rounded shape for better filling and earth moving properties
2 x 45° tilting angle
Protected cylinder
Protected hydraulic connections
Reinforced tilting head for better power distribution and longer service life
Strong version with 2 cylinders from 5t

Technical data mini ditch-cleaning bucket

	MG 1	MG 2	MG 4	MG 6
Excavator class	1,5 - 1,9 t	2,0 - 2,5 t	2,6 - 5,0 t	5,1 - 6,0 t
Suspension	SY 01	SY 03	SY 03	SY 03
Number of hydraulic cylinders	1	1	1	2
Cutting width	SAE / KG	SAE / KG	SAE / KG	SAE / KG
850		0,077 / 148
1000	0,080 / 140	0,092 / 160	0,150 / 172
1200		0,117 / 177	0,180 / 192	0,190 / 210
1400			0,208 / 214	0,240 / 231
1500			0,220 / 222	0,270 / 251

SAE = capacity (m³), KG = weight (kg)

Rigid ditch cleaning buckets in a new shape

The rigid ditch cleaning buckets in the 0.5 - 6 ton class have also received an update. Their shape and stability have been optimized. All 4 MG bucket classes have been adapted to the current generations of mini excavators and particularly take into account the requirements for universal use.

New, market-oriented design
Extended bucket base
Rounded shape for better filling and earth moving properties

Technical data mini ditch cleaning bucket

	MG 09	MG 1	MG 2	MG 4	MG 6
Excavator class	0,5 - 0,9 t	1,5 - 1,9 t	2,0 - 2,5 t	2,6 - 5,0 t	5,1 - 6,0 t
Suspension	SY 01	SY 01	SY 01 / SY 03	SY 03	SY 03
Cutting width	SAE / KG	SAE / KG	SAE / KG	SAE / KG	SAE / KG
800	0,040 / 38		0,077 / 148
850			0,077 / 77
1000		0,080 / 140	0,092 / 88	0,150 / 113
1200			0,117 / 103	0,180 / 130	0,190 / 136
1400				0,208 / 149	0,240 / 154
1500				0,220 / 155	0,270 / 173

SAE = Inhalt (m³), KG = Gewicht (kg)

Universal tilt bucket

The universal tilt buckets from Lehnhoff for mini and compact excavators are ideal to excavate material and work on embankments and levelling work.

Large swing angle of 2 x 45°
Good filling properties and easy emptying thanks to the LH double-conical design (tilt bucket with backhoe bucket shape)
Blades and side jaws made of Lehborit 5000 (500HB)
Smooth and stable bottom (400HB)
Optionally with Lehmatic, Symlock or Variolock adapter
Available with hydraulic cylinder, hydraulic grab rotating motor or in rigid design

Technical data mini-universal tilt bucket

	MB 20 H	MB 20 M
Excavator class	3,5 - 6,0 t	3,5 - 6,0 t
Cutting width	SAE / KG	SAE / KG
1000	0,0200 / 175	0,0200 / 255
1200	0,0230 / 190	0,0230 / 285

SAE = capacity (m³), KG = weight (kg)
