Lehnhoff quickcoupler with extended operating range and flexibility

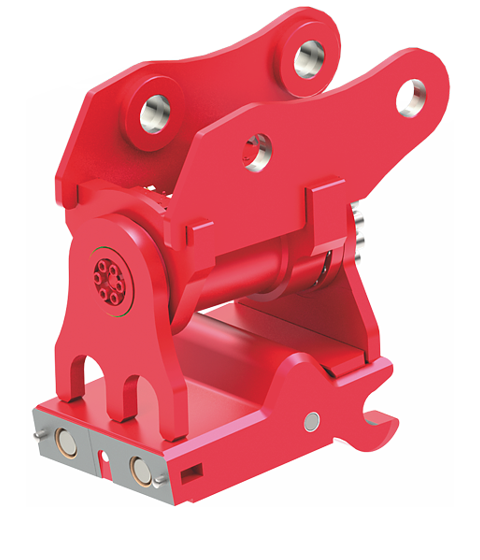

Lehmatic Powertilt: Quickcoupler with tilt motor
Combines all benefits of a quickcoupler with a tilt motor. Works flexibly with all sorts of buckets and can also accommodate narrow buckets, in particular. The Lehmatic Powertilt is the ideal solution for, e.g.:
- Pipe-lining construction
- Targeted material filling
Powertilt®: New Generation (NG)
-
Large swivel angle, high retention forces, low-maintenance
-
Rotary feedthrough for two hydraulic lines. Simplest installation, compact design, protected hydraulic line, as it is no longer installed above the rotary axis
-
2 lines, here used for SW opening and closing
Advantages:
- Huge work range: Up to 2 x 90° swivel range on both sides (180°)
- Including rotary feedthrough for hydraulics (NG)
- Tilt motor sealed and protected against damage
- High retention forces and robust design for toughest applications
- Can be combined with all Lehnhoff quickcouplers
Technicak data Powertilt® quickcoupler
| Powertilt | PTS 09 |
PTS 10 |
PTS 180 NG |
PTS 10 |
PTS 240 NG |
PTS 11 |
PTS 300 NG |
PTS 12 |
PTS 465 NG |
|---|---|---|---|---|---|---|---|---|---|
| Excavator class | 11 - 15 t | 15 - 18 t | 11 - 18 t | 18 - 24 t | 18 - 24 t | 24 - 32 t | 24 - 32 t | 32 - 40 t | 32 - 40 t |
| Lehmatic | MS/HS 10 | MS/HS 10 | MS/HS 10 | MS/HS 21 | MS/HS 21 | MS/HS 21/25 | MS/HS 21/25 | MS/HS 25 | MS/HS 25 |
| Variolock | VL 100 | VL 100 | VL 100 | VL 210 | VL 210 | VL 210/250 | VL 210/250 | VL 250 | VL 250 |
| Tilt angle | 2 x 70° | 2 x 70° | 2 x 60° | 2 x 90° | 2 x 60° | 2 x 70° | 2 x 60° | 2 x 70° | 2 x 60° |
| Weight approx. (kg) | 260 | 295 | 240 | 385 | 365 | 545/605 | 480/540 | 680 | 640 |
| Operating pressure (bar) | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 310 |
Quickcoupler with Rotator

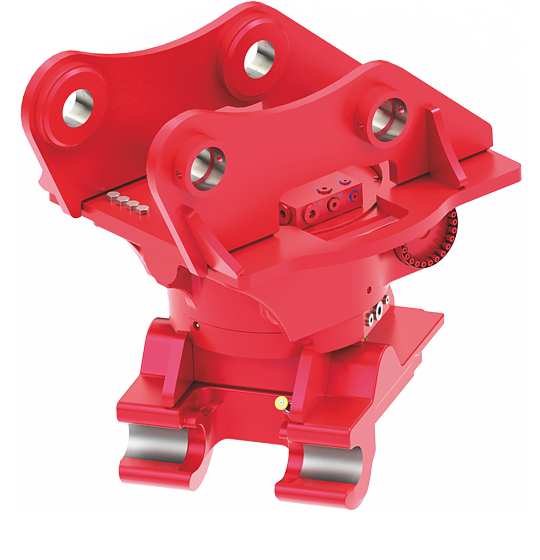

Extends the action radius of the attachments by 360° through continuous left/right rotation. By simply rotating by 180°, a backhoe bucket quickly becomes a shovel bucket, for example.
- More flexibility thanks to more working positions
- Low build height of the rotary drive, therefore more breakout force
- Optional oil feed-through
- Optionally with direct suspension or quickcoupler suspension on
excavator side
Technical data Rotator
| Rotator | RB 180 | RB 250 | RB 330 |
|---|---|---|---|
| Excavator class | 10 - 18 t | 17 - 25 t | 24 - 33 t |
| Lehmatic | MS/HS 10 | MS/HS 10/21 | MS/HS 21/25 |
| Variolock | VL 100 | VL 210 | VL 250 |
| Weight approx. (kg) | 410 | 540 | 750 |
| Operating pressure (bar) | 175 | 175 | 175 |
