Powertilt / Rotator / Tiltrotator

Lehnhoff quickcoupler with extended operating range and flexibility

Lehmatic Powertilt: Quickcoupler with tilt motor

Combines all benefits of a quickcoupler with a tilt motor. Works flexibly with all sorts of buckets and can also accommodate narrow buckets, in particular. The Lehmatic Powertilt is the ideal solution for, e.g.:

Pipe-lining construction
Targeted material filling

The tried and tested classic, optionally with load hook.

Powertilt: New Generation (NG)

- Large tilt angle of 2 x 90°, high retention forces, low-maintenance

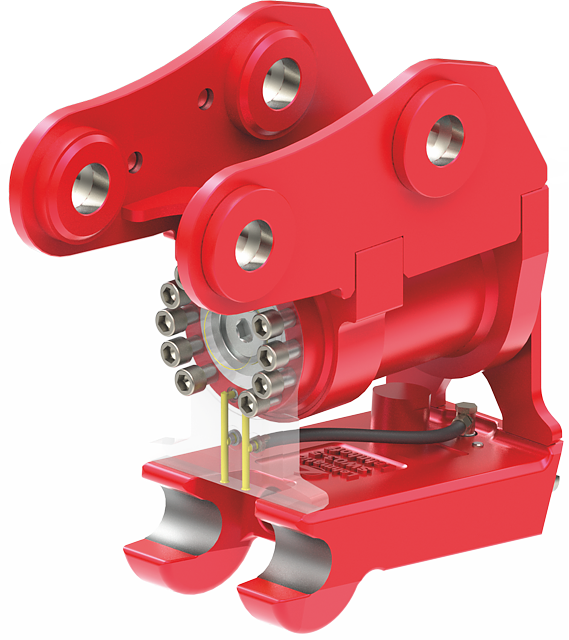

- Rotary feedthrough for two hydraulic lines. Simplest installation, compact design, protected hydraulic line, as it is no longer installed above the rotary axis

- Two lines are used for opening and closing the quickcoupler

Advantages:

Huge work range: Up to 2 x 90° swivel range on both sides (180°)
Including rotary feedthrough for hydraulics (NG)
Tilt motor sealed and protected against damage
High retention forces and robust design for toughest applications
Can be combined with all Lehnhoff quickcouplers

Technical data Powertilt quickcoupler

Powertilt	PTS 07	PTS 70 NG	PTS 08	PTS 100 NG
Excavator class	5 - 6,8 t	5 - 7 t	6,8 - 9 t	6,8 - 9t
Lehmatic	MS/HS 08	MS/HS 08	MS/HS 08	MS/HS 08
Variolock	VL 80	VL 80	VL 80	VL 80
Weight approx. (kg)	195	175	230	220
Tilt angle	2 x 90°	2 x 90°	2 x 90°	2 x 90°
Operating pressure (bar)	210	210	210	210

Quickcoupler with Rotator

Extends the action radius of the attachments by 360° through continuous left/right rotation. By simply rotating by 180°, a backhoe bucket quickly becomes a shovel bucket, for example.

More flexibility thanks to more working positions
Low build height of the rotary drive, therefore more breakout force
Optional oil feed-through
Optionally with direct suspension or quickcoupler suspension on
excavator side

Rotator mit baggerseitiger SW-Aufhängung (Sandwich)

Technical data Rotator

Rotator	RB 120
Excavator class	5 - 12 t
Lehmatic	MS/HS 08
Variolock	VL 80
Weight approx. (kg)	from 110
Operating pressure (bar)	175
